With the advent of computers for data gathering in the classroom, the emphasis has shifted somewhat from the traditional model of filling the hours with tedious, repetitive data collection - such as we used to do by measuring dot positions on a piece of spark tape - only to conclude with a graph and a couple of questions near the end.
Data collection is often nearly instantaneous, or at least in real-time, and the bulk of the time needed to complete a lab report can be spent reflecting on what the activity actually is about rather than simply waiting to take the next data point.
A few days ago I had a case in point with Vernier's lab system for measuring the speed of sound. As I've mentioned several times before in this column, Vernier is the low-end Mac enthusiast's best friend. They continue to offer equipment compatible with every Mac ever made, including the Plus. Even better, they still offer the software and equipment needed to make those old Apple II computers perfectly legitimate lab data collection instruments.
If you're looking for a use for one of those old computers, consider equipping it with a Vernier serial port interface and a microphone. Vernier's software - which runs on Power Macs, 680x0 machines, and has just recently been adapted for OS X - will measure the pressure waves of a sound passing over a microphone and graph the result.

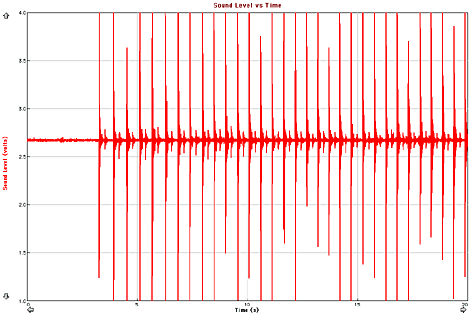

One of the labs in their manual goes like this: Put the microphone near the end of a long tube. Any time sound goes into a larger or smaller region, such as when it exits the tube, part of the sound will reflect. If you make a sharp sound such as snapping your fingers near the microphone, the computer can measure the initial sound plus several echoes. The entire experiment is over by the time you straighten your fingers. In fact, the data gathering portion of this lab lasts approximately 0.003 seconds, or three milliseconds.
With such technology available, I am able to tell my students (I swear I am not making this up), "Use this equipment to figure out the speed of sound. Report the value you get and write a paragraph about how you did it."
I don't tell them to measure the length of the tube or divide the length by the time measured by the sensor; they figured it out on their own from the context of the earlier discussion on sonar. A few had to be nudged to double the tube length because the sound echo makes a round trip; other than that, we got excellent data, the students learned how sonar works and what speed of light is, and we could spend several minutes just debriefing on the technique involved.
This model of student-generated methodology is considered high-powered stuff in science education and is much more memorable than a carefully written, step by step procedure that tells everything from how to hold the mike to which button to press and when. Vernier's own lab manuals are written in this excruciating detail - good for beginning teachers and students, but really overkill when you consider it takes several pages of button pushing instructions to get to the 3 millisecond measurement.
Many physics teachers already know the benefits of computer or calculator - or Palm-based data collection. I'm trying to encourage the rest of our staff to do one computer-based lab a semester, but it isn't easy. In general, my colleagues are not as comfortable with computers as I am, and despite several (maybe six?) workshops I have conducted for them, the most frequent request I get is, "When are we going to be trained on this?"
Anyway, if you're a physical science, general science, chemistry, or even a biology (especially physiology) teacher, give Vernier and their competitor, Pasco, a look. See if you can begin a gentle introduction into the world of computer-assisted data collection. You won't be disappointed.
P.S. There are several shareware programs available for turning your Mac's microphone into an oscilloscope probe and displaying your voiceprint on the computer in real time. I use one called Digital Oscilloscope. If your budget's tight, you can do a surprising number of measurements with this software.
Jeff Adkins is a science teacher who isn't afraid to state his preferences in computing platforms. In his classroom he has everything from a beige All-in-One to a a G4 XServe, and they all work together nicely. He calls himself the "poster child for technology integration" in the classroom. He was the 2006 Outstanding Educator of the Year for the California Computer Using Educators (CUE) organization. He also maintains a site for astronomy teachers at www.AstronomyTeacher.com.
